מערכת גרידפלקס GRIDFLEX

The flexible, efficient slab formwork for simplest assembly with highest work safety.

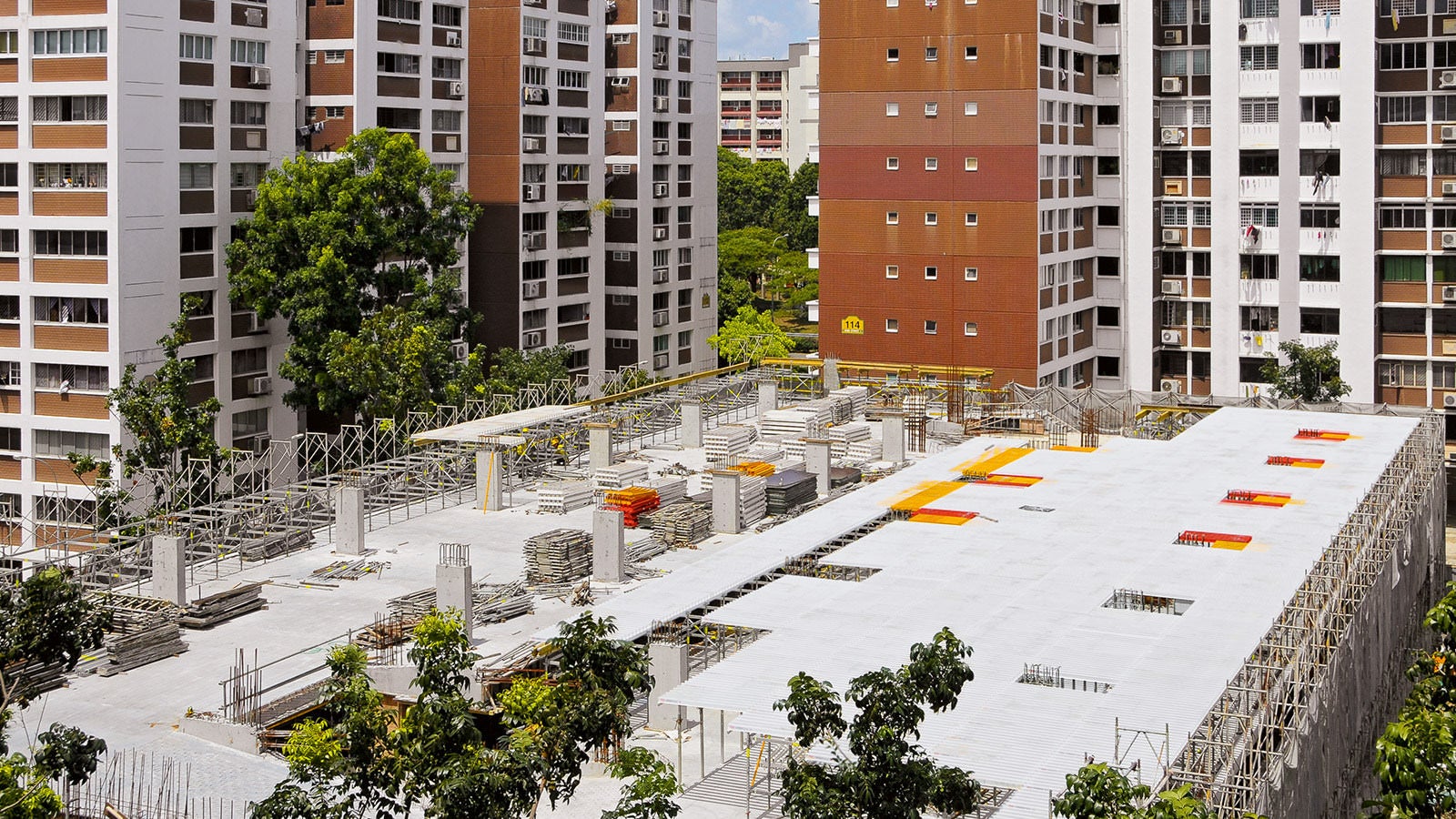

The red width compensation and the yellow longitudinal compensation offer high flexibility.

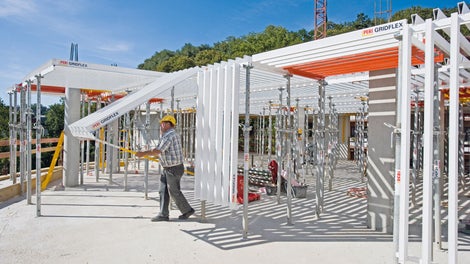

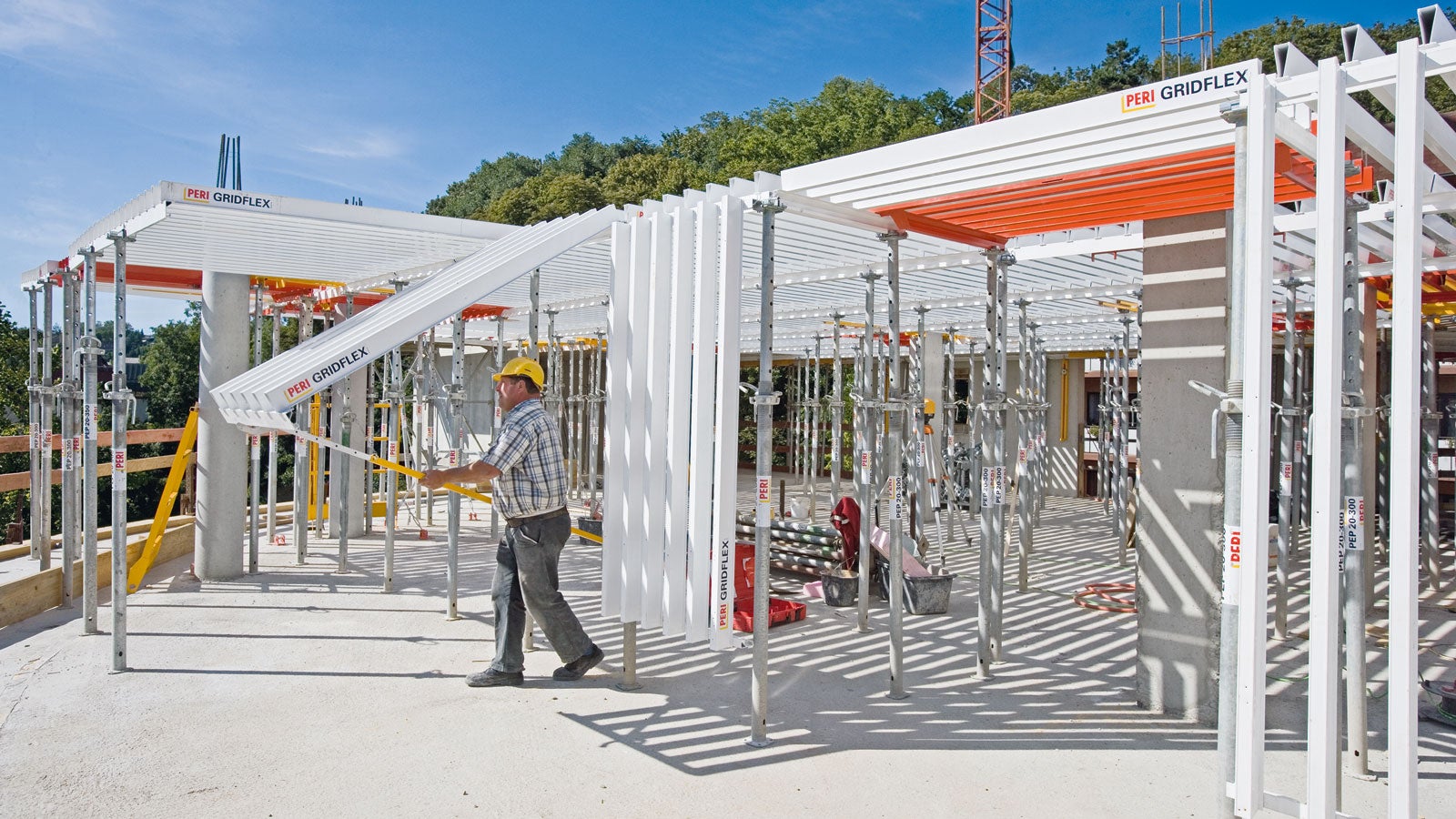

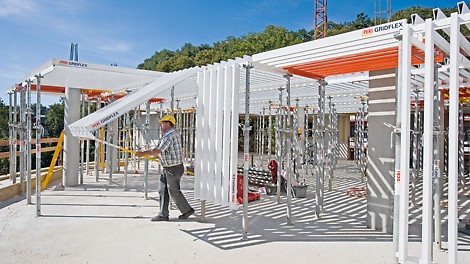

The assembly sequence is very simple: hook-in element, push into position with the shuttering aid, attach slab prop and position vertically.
All parts are moved by hand, their design is particularly lightweight.

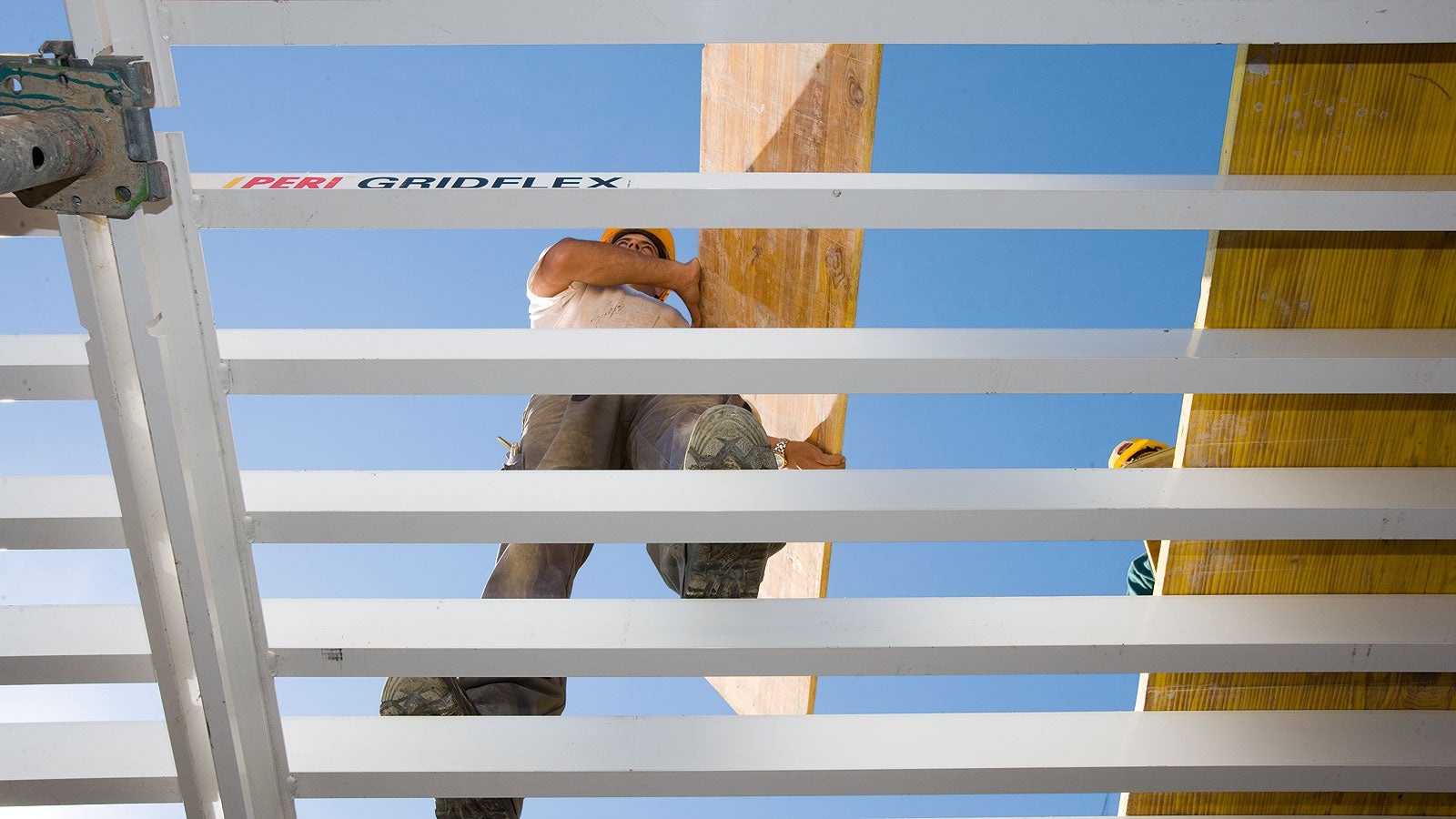

After the assembly process has taken place, the closed girder grid can be safely accessed for installing the formlining.
GRIDFLEX has received a number of awards as an innovative and particularly safe system.
1
/
6
1
/
1

Overview

The lightweight GRIDFLEX Slab Formwork is used for constructing residential and multi-storey buildings. Slab thicknesses up to 33 cm can be realized with the formwork. In order to concrete slabs up to 67 cm thick, the panels have to be additionally supported in the centre. The standard panel weighs only 20 kg and is swivelled upwards from the assembly area by means of the shuttering aid. Slab props are subsequently hooked in and vertically aligned. On the now accessible girder grid, the formlining of choice can be installed. The recurring systematic assembly sequence ensures fast working operations.

Safe shuttering procedure
by swivelling the panels upwards with site personnel positioned on the slab below

Simple working operations
through a systematic assembly sequence with only one standard and two compensation panels

Filler areas are quickly closed
through a simple change of direction of the panels along with the use of transverse and longitudinal infills

Technical Details

  • Slab formwork with accessible aluminium girder grid for formlining of choice
  • For slab thicknesses up to 33 cm, or with additional middle support of the element up to 67 cm
  • Lightweight components – the standard element weighs only 20 kg
  • Only 2 system components required for each standard field (Prophead and GRIDFLEX Standard Element)
  • Optimized for PEP / PEP Ergo Slab Props, only 0.5 props per m² of slab surface (slab thickness d = 33 cm)
  • Through the change in the forming direction, filler areas are reduced to a minimum
  • Closing of filler areas with only 2 different filler elements
  • Systematic assembly sequence
  • Simple, swivelled upwards from below guardrail solution for the slab edges
