פלטפורמת עבודה מתקפלת FB 180

FB 180 Folding Platform System: The universal working and safety scaffold.

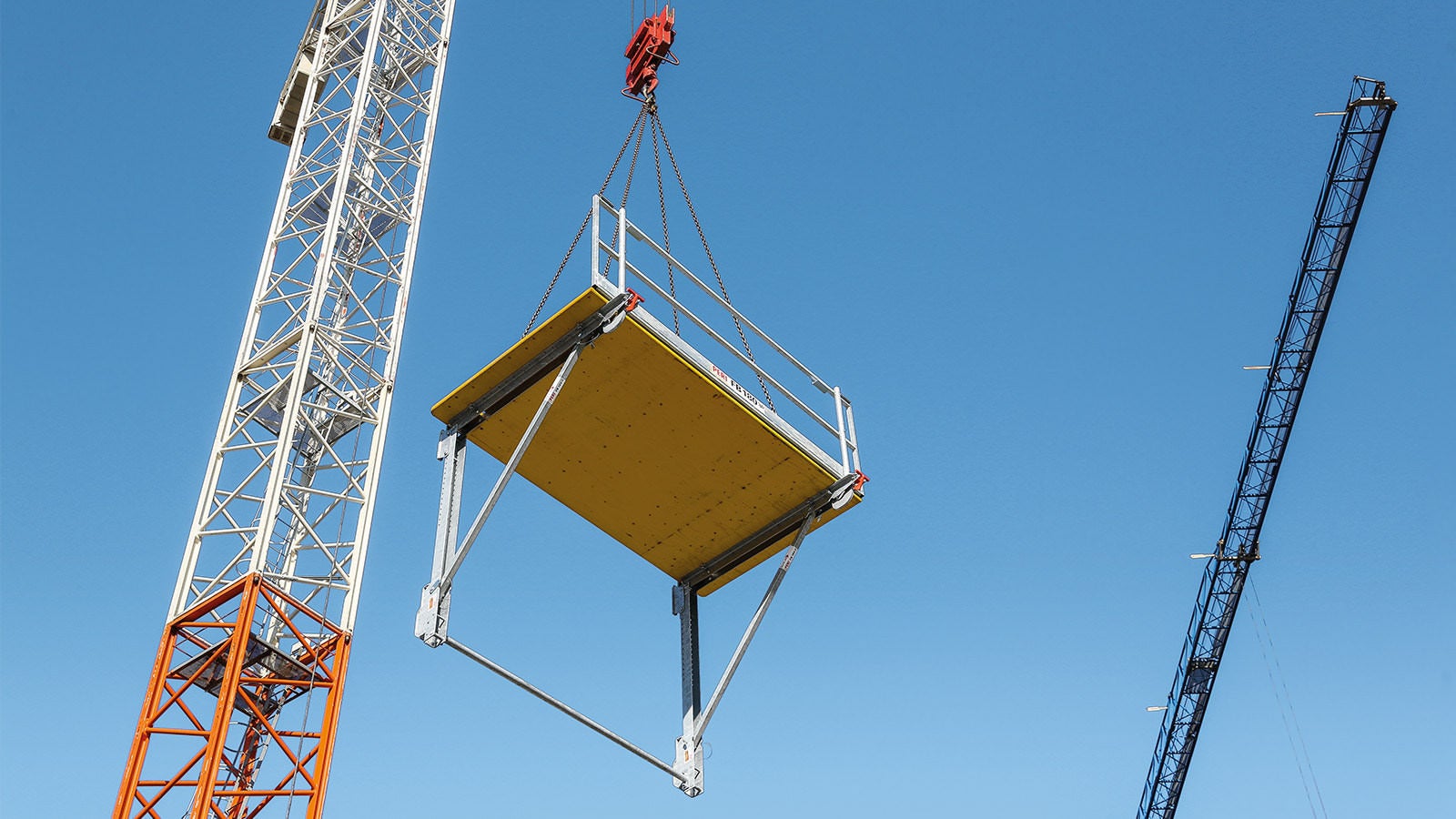

The FB 180 folding platform is delivered fully assembled to the jobsite.

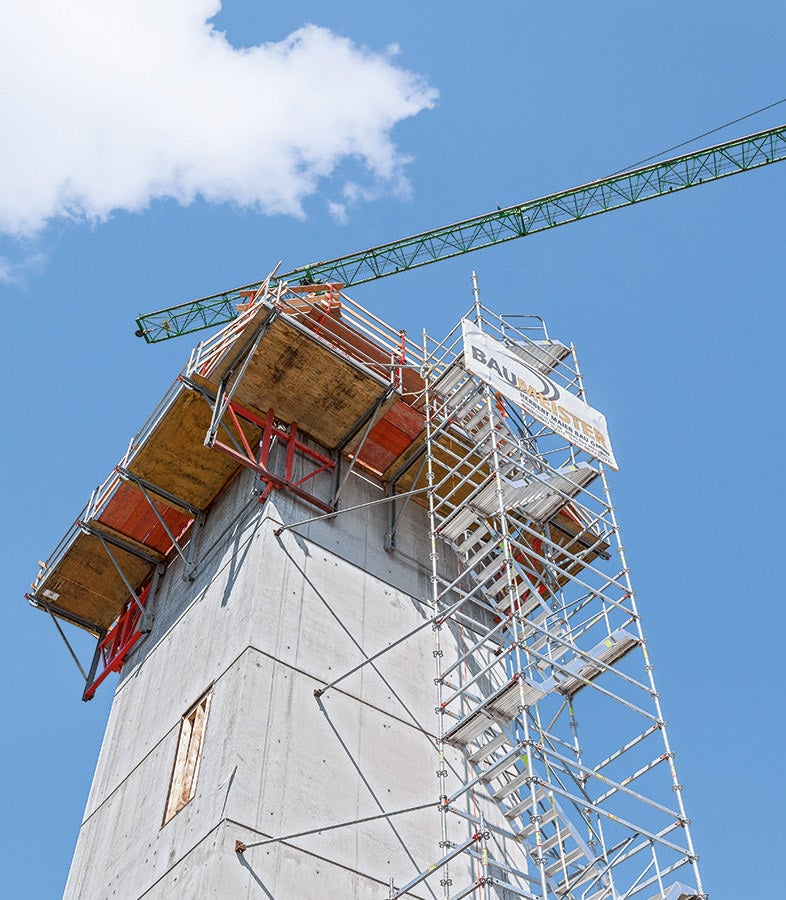

The Folding Corner Platform can be used on both the right and left sides. It is delivered as one unit together with the Corner Platform Frame.
Only a 27 cm effective stacking height ensures minimum space requirements during transportation, on the jobsite and in the yard.
1
/
4

Overview

The FB Folding Platform can be used as working and safety scaffold. In addition, it serves as a support for wall formwork up to 5.40 m high or as a roof edge protection scaffold. The Folding Platform is delivered fully assembled to the jobsite. The small number of required anchors and low assembly costs make the Folding Platform particularly cost-effective.

Simple application
Little effort required and fast assembly even with complicated ground plans

Advantageous for planning, utilization and provision
Only 3 different platform types and always identical anchor spacings

Efficient solutions

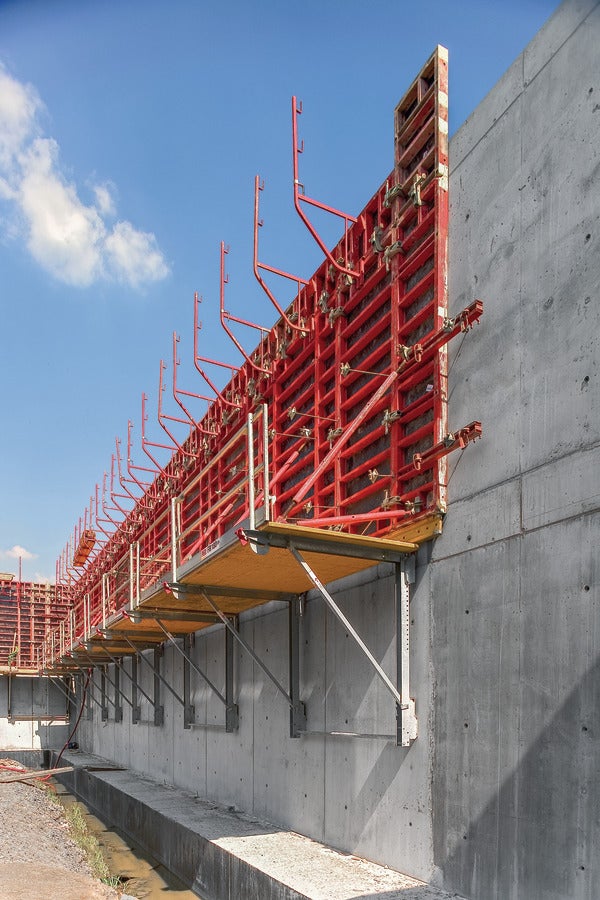

Corner Platform can be used for both the left and right sides; converted in only a few assembly steps to roof edge safety scaffold

Uncomplicated use with every ground plan
Compensation areas as well as internal and external corners without special platforms possible

Technical Details

  • Working scaffold according to DIN EN 12811 and safety scaffold in accordance with DIN 4420; formwork scaffold for closing formwork up to 5.40 m high; with guardrail height extension also as roof edge protection scaffold
  • Platform length 300 cm; platform width 180 cm (standard platform)
  • Permissible load according to DIN EN 12811: Load Class 4 (300 kg/m²) when using main, intermediate and corner platforms; Load Class 5 (450 kg/m²) for special use only with main platforms
  • Finishing platform as access to optional wind bracing
  • Support extensions with adjustable pressure point for bridging building openings
